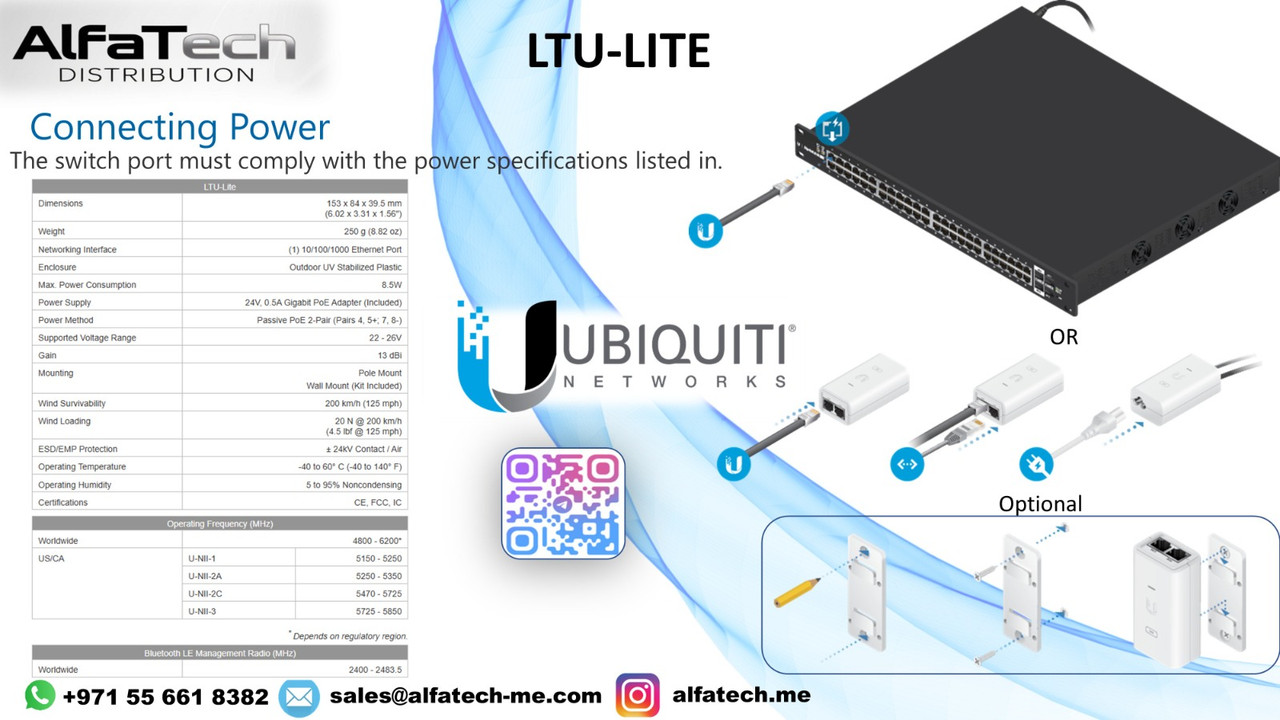

? Powering the LTU-Lite

The LTU-Lite requires a 24V, 0.5A Gigabit PoE Adapter for operation. You can power it using:
✔ PoE Switch: If your switch supports Passive PoE (Pairs 4, 5+ & 7, 8-).
✔ PoE Injector: Use the included 24V PoE adapter if your switch doesn’t provide PoE.
✔ Optional Powering Setup: Various mounting options allow flexible placement with power considerations.

? Technical Specifications:

• Max Power Consumption: 8.5W
• Supported Voltage Range: 22-26V
• Networking Interface: (1) 10/100/1000 Ethernet Port
• Gain: 13 dBi
• Mounting: Pole or Wall Mount (Kit Included)
• Wind Survivability: 200 km/h (125 mph)
• Operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Certifications: CE, FCC, IC

? Installation Recommendations:

• Use a properly grounded PoE switch or injector to prevent damage.
• Ensure weatherproofing for outdoor setups, especially for cable connections.
• Verify that the switch port complies with the required power specifications.
