Ubiquiti mFI

mPower-Pro

8-Port Power Outlet   Dimensions241.3 x 116.9 x 41.27 mmWeight790 gPorts(1) EthernetMountingWall-Mount Bracket (Kit Included)WiFi Standards802.11b/g/nMemory16 MB RAM, 8 MB FlashOperating Temperature-10 to 45° CHumidity95% RH Max.

mPower

mFi, 3-port Power (EU and US), Wifi

mPort-S

Two mFi RJ45 connectors and a terminal block connector with RS232/422/485 serial connectivity through a standard DB9 serial port or a terminal block connector and built-in WiFi and Ethernet to connect to the IP network. Dimensions 100 x 60 x 27.5 mm...

mPort

 Two mFi RJ45 connectors and a terminal block connector with built-in WiFi and Ethernet to connect to the IP network. Dimensions 100 x 60 x 27.5 mm (H x W x D) 100 x 60 x 36.5 mm (with Bracket)  Power Supply 24V, 0.5A Surge Protection...

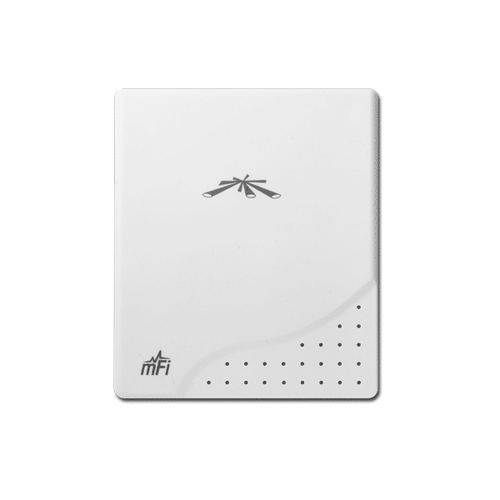

mFi-THS

Temperature Sensor Dimensions 100 x 85 x 27.8 mm  Temperature Range -10 to 50°C Response Time <15 Seconds Ports (1) mFi RJ45 Port Operating Temperature -20 to 60ªC Operating Humidity 0 to 95% Condensing

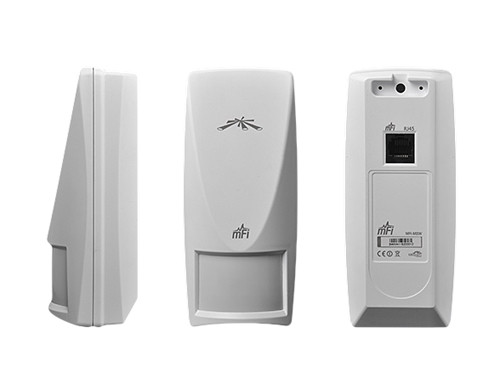

mFi-MSW

Wall Mount Motion Sensor Dimensions 146 x 66 x 52 mm RFI Immunity Avg. 10 V/m (80 to 2,000 MHz) Detection Range 10 x 10 m, 110° @ 25° C Ports (1) mFi RJ45 Port Operating Temperature -10° to 45° C Operating Humidity 95% RH Max.

mFi-MSC

Ceiling Mount Motion Sensor Dimensions 134.5 x 134.5 x 30.5 mm RF Immunity 10V/m at 80 MHz to 2 GHz Warm Time 2 Minutes Angle of View 360° Cone of Detection 110° Wide Angle Ports (1) mFi RJ45 Port Operating Temperature 0 to...

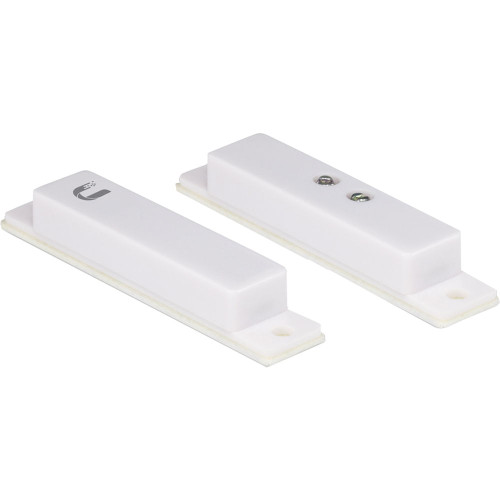

mFi-DS

Door Sensor Dimensions 50 x 9.5 x 7.7 mm (Magnet), 50 x 9.5 x 7.7 mm (Switch) Contact Form Form A (SPST) Maximum Rating 1.0A @ 28VDC Initial Contact Resistance 0.3 Ħ Maximum Operating Range 20 mm (Typical) Operating Temperature -10 to...

mFi-CS

mFi-CS Current Sensor. Dimensions 32 x 57 x 22 mm Ports (1) mFi RJ45 Port Input Current 0 to 100A Operating Temperature -25 to 70‹ C Operating Humidity .85% Condensing
