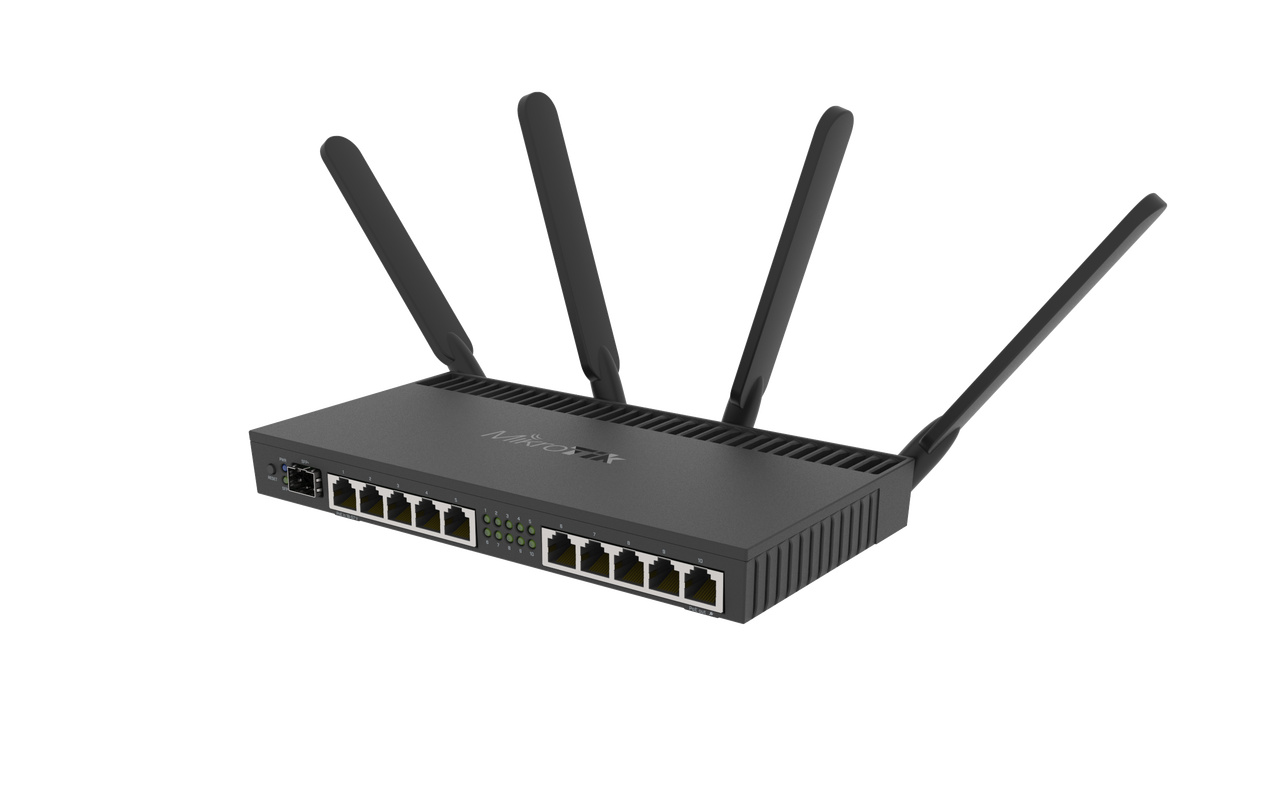

RB4011iGS+5HacQ2HnD-IN

USD249.00
(No reviews yet) Write a Review
SKU:
RB4011iGS+5HacQ2HnD-IN
Weight:
0.00 KGS

RB4011iGS+5HacQ2HnD-IN



Specifications

Details
Product code RB4011iGS+5HacQ2HnD-IN
Architecture ARM 32bit
CPU AL21400
CPU core count 4
CPU nominal frequency 1.4 GHz
Dimensions 228 x 120 x 30 mm
License level 5
Operating System RouterOS
Size of RAM 1 GB
Storage size 512 MB
Storage type NAND
Tested ambient temperature -40°C to 45°C



Powering

Details
PoE in Passive PoE
PoE out Passive PoE up to 57V
PoE in input Voltage 18-57 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max out per port output (input > 30 V) 420 mA
Max out per port output (input < 30 V) 600 mA
Max total out (A) 600 mA
Max power consumption 44 W
Max power consumption without attachments 23 W


Wireless

Details
Wireless 5 GHz number of chains 4
Wireless 5 GHz Max data rate 1733 Mbit/s
Wireless 5 GHz standards 802.11ac MU-MIMO
AC speed AC2000
Antenna gain dBi for 5 GHz 3
Wireless 5 GHz chip model QCA9984
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 3
Wireless 2.4 GHz chip model R11e-2HnD


Ethernet

Details
10/100/1000 Ethernet ports 10


Fiber

Details
SFP+ ports 1


Peripherals

Details
MiniPCI-e slots 1
Serial port RJ45


Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
